Terraform is an open-source IaC (Infrastructure as Code) tool. This one works through providers that complete the tool to interact with the various cloud providers, SaaS providers and many more. Terraform uses, for its providers, a particular and open source protocol. How Work? What is behind this protocol?


In this article, we will see how Terraform uses Providers through the Terraform public registry, then the different types of registry protocols that can be used. It is possible to extend this method to use Terraform Modules but the subject is not covered here. For more information on the subject, you can learn more about the official documentation.


Terraform side:

How does Terraform work with the registry?

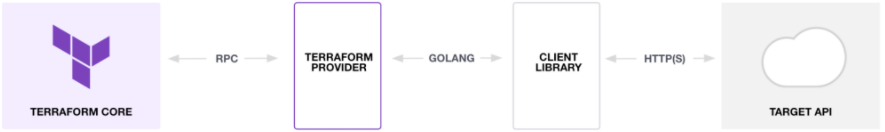

To work, Terraform needs to retrieve and use providers to interact with target platforms: Terraform plugin (From: https://www.terraform.io/docs/extend/index.html)

The recovery of these providers goes by default through the Terraform public registry (which we will name here simply Terraform registry), which is managed by HashiCorp and accessible via the internet. For the Terraform user, retrieving the provider is quite trivial and can be similar to a simple “download” (through the command terraform init). In reality, the actions carried out by Terraform are much more numerous and complex. Terraform interacts with the registry via a particular protocol that is defined in the Terraform documentation.

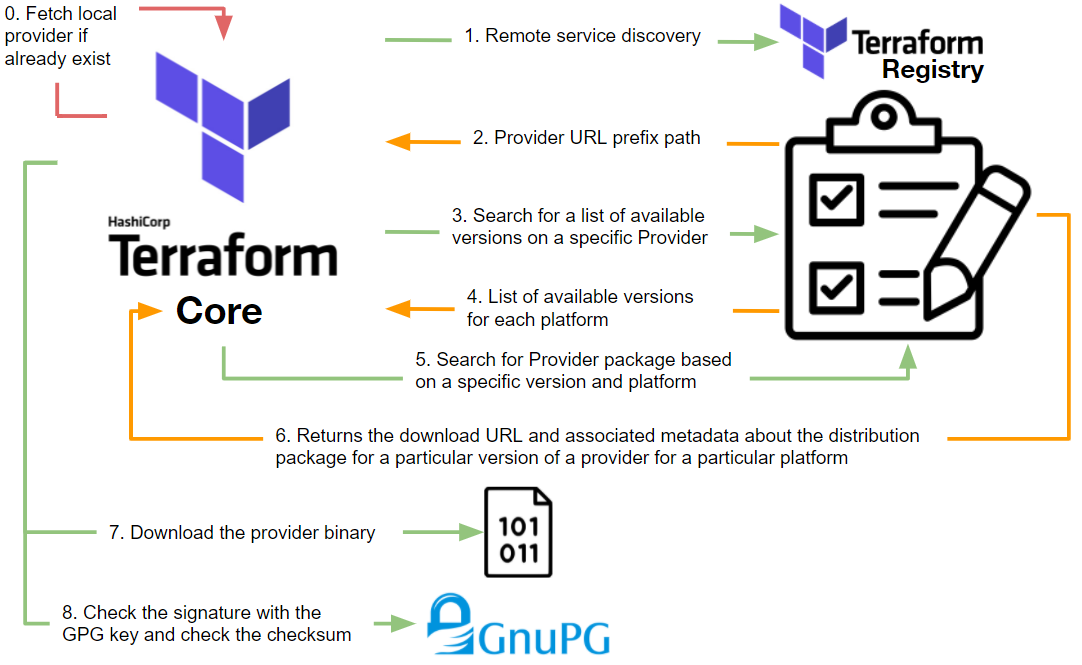

To avoid reading all the documentation, I have prepared a diagram for you which traces the main steps between Terraform core and the registry: Terraform Registry Protocol

As you will have understood, the interactions are more numerous and more complex than a simple binary download.

The differences between registry protocol

There are several types of registry protocols:

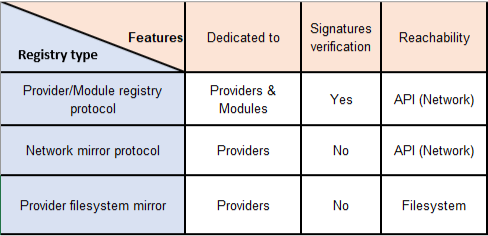

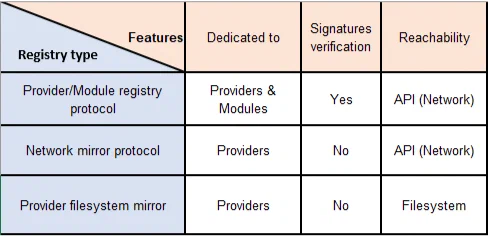

The diagram summarizes the previous remarks: Terraform Registry Protocol comparator Note that the Network Mirror Protocol is less complete than the Provider/Module Registry Protocol but is much easier.

Authentication to the registry

With the exception of the Provider filesystem mirror, it is possible to implement the Login Protocol in your registry to allow certain call APIs only if your users are authenticated.

The protocol is based on OAuth 2.0 and only supports type permissions Code Grant with some limitations like:

  • Refresh tokens is not supported. The user will need to authenticate again.
  • Token expiration is not supported.

Through the command terraform login, the user is able to authenticate to an OAuth server. In particular, the command supports Proof Key for Code Exchange to protect request interceptions.

Finally, it is important to note that token retrieved from authentication is made on the user side and, in other side, that it will be necessary to add to your registry a mechanism of validity check of the token on the target APIs.

Go beyond

In particular, we have seen how the Registry Protocol works and its different forms. For those who want to go further, it is possible to set up a Provider Registry as a static website and simply. With some exceptions, if you implement a Login Protocol who will need to set up a mechanism to check the token validity on the target APIs.

Finally, for those who want to implement the protocol registry, you can base on the following GitHub repository: https://github.com/apparentlymart/terraform-aws-tf-registry
