Creating, storing or transferring secrets within an application has always been a challenge. Even today bad practices persist, such as sending emails with credentials, weakening the security of your applications. Vault, with the help of Terraform makes it possible to respond to the problems of storing and distributing secrets. We will see in this tutorial how Vault allows you to secure the management of your passwords and secrets… by making them disappear.

As the subject is vast, it will be covered in three posts aimed at presenting the steps for integrating the Vault into an application. Each major step constitutes an post, and each of them follows:

We will thus see how to implement each of these steps within an application, what this changes for the application, and the points to watch out for in this migration.

To begin with, we will briefly present Vault and Terraform, then the demonstration application environment, and its secret distribution / storage issues.

Prerequisites

If you do not know Vault, I invite you to try the interactive tutorial on the official website Vault in order to get a first idea. I also advise you to read the post on Vault authentication methods in order to better understand and implement Vault integration at the application level.

We will also use Docker and Docker compose in order to simplify our demonstrations.

We will use here Vault in conjunction with Terraform, the two tools having a good integration. We’ll see what each of them brings, and why it is interesting to combine them.

Vault and Terraform: Overview

Vault: management and protection of secrets

Vault is a multi-environment secret centralization solution (cloud, hybrid, intranet, etc.) used for storage, access and distribution of secrets. These can be of all types: username / password, certificate, encryption key, etc.

Interaction with the tool can be done via UI, CLI or even REST API allowing integration with devops tools or applications. Vault stands out, compared to other tools, by its secret lifecycle management :

  • Static secrets stored as key/value allowing any form of secret to be stored and found in most tools. Integrating static secrets is straightforward but requires the implementation of a password rotation method.

  • Dynamic secrets or otherwise called Secret as a Service. In this case, the secrets have a short lifespan determined by the access time to the service. Take the example of an application wishing to access a database (database secret engine) Vault database secret engine The application requests access to a database from Vault. Vault creates this access, then provides the credentials to the application. Once received, the application connects to the database to interact with it. Then the application asks Vault to revoke access to the database where it finally removes the credentials. Every dynamic secret has a default lifetime, in the event that the application does not contact Vault to revoke access, then Vault will take care of revoking them. Thus, the secrets are provided on demand with a defined duration which offers the advantage of no longer have password rotation. Each time you log in, the application uses Vault as an intermediary.

  • Finally, Vault is able to do Encryption as a Service, for encrypt data in transit or at rest. This allows reduce the application complexity linked to encryption key management (storage, life cycle, key exchange, etc.) but also encryption / decryption operations.

Terraform: plan, create, modify and version the infrastructure

Terraform enables infrastructure planning, creation, modification and versioning. Based on HCL language (Hashicorp Configuration Language), Terraform makes it possible to transform its infrastructure into Infrastructure as Code (IaC).

In our context, Terraform will have a somewhat more specific role than in its usual use. He will play the role of facilitator from Vault both in its configuration and its integration on the application side.

On the one hand, it will allow us to configure the Vault service with the dedicated Terraform provider and integrate Vault policies on an ongoing basis.

On the other hand, it will allow us to integrate Vault easily and securely with applications. This will have the role of a trusted third party that we will use with the method Approle from Vault. In the context of this post, we will not be able to fully integrate the good practice of this method but you can refer to the Vault documentation.

Of course, all of these things can be done without Terraform, but integrating Terraform with Vault makes it much easier for us.

Setting up the environment

Now that we’ve gone through the tools, let’s go set up our environment to be secured with Vault.

We are going to take as an example a PHP website under apache using a MySQL database (LAMP stack). In order to simplify the examples but also to better focus on using Vault, we are going to minimize our application.

To do this, we will need:

  • Vault in version 1.0.3
  • Terraform in version 0.11.10
  • A web application PHP 7.2 and apache
  • A database that will be here MySQL in version 5.7

You will find the sources to reproduce this environment here.

Let’s take a closer look at the docker-compose.yml which represents here our application which is divided into three services:

  • Vault: The Vault server launched in developer mode.
  • Web: Our PHP web application embedded by the apache web server. We create our web image upstream, via the dockerfile, in order to install mysqli which will allow it to interact with the database. Finally, the current web folder will contain our web pages: here index.php only.
  • Db: The MySQL database where we have:
    • 2 users created: root and dev.
    • A named database: test

Finally, to complete this tour, let’s set up our environment with the following command:

$ docker-compose up

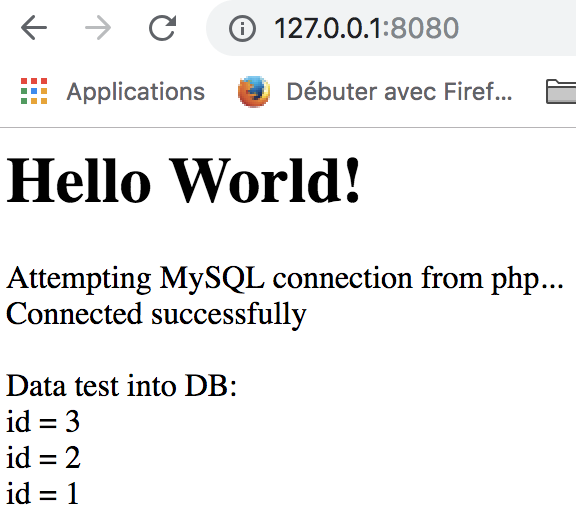

By accessing the website via the following address: http://127.0.0.1:8080, we should end up with the following page: Our website

The action done by the PHP web application is quite simple:

  1. The application connects to the test database with the user dev.
  2. Drops the test table if it exists.
  3. Create the table test.
  4. Insert 3 values into the table: 1, 2 and 3.
  5. Retrieves all the values in the table test.
  6. Displays the result of the retrieved values.

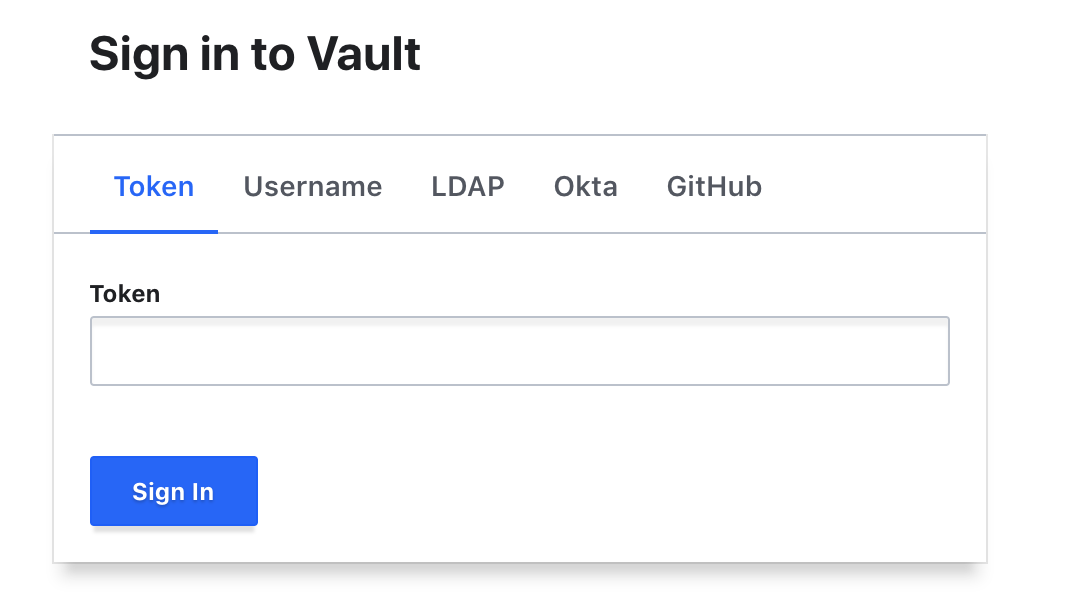

All of these actions are defined in the file web/index.php. Finally, we also have access to the Vault GUI at the following address: http://127.0.0.1:8200 Vault portal You can identify yourself with the following token: root

Identify unprotected secrets within the web application

As we have seen, the environment is quite simple. Our goal, as a first step, is to identify secrets within the web application that may be subject to disclosure. Thus we will not take into account Vault or the MySQL database which are launched in “dev” mode in order to simplify the environment.

So let’s start looking at our web service at docker-compose.yml:

web:
  build: .
  container_name: php
  environment:
    - DB_HOST=${MYSQL_HOST}
    - DB_NAME=${MYSQL_DATABASE}
    - DB_USER=${MYSQL_USER}
  depends_on:
    - db
  volumes:
    - ./web/:/var/www/html/
  ports:
    - "8080:80"

All of the environment variables do not contain any sensitive information: database name, user name and host name. However, on the file side web/index.php we notice that the pass variable contains the password of the database user:

$host   = getenv('DB_HOST');
$dbname = getenv('DB_NAME');
$user   = getenv('DB_USER');
$pass   = "dev";

Here, the use of a credentials file or the declaration of the variable in the docker-compose does not solve our problem because the secret will always be visible

In the event that the application is hosted on a repository of type Git and used by a CI / CD pipeline, it becomes critical to hide this secret so that the various actors cannot become aware of it. So, we need to remove the visibility of this secret in the code.

Migration of the web application to Vault with static secrets

To address this issue, we will migrate the secrets of the web application to Vault with the Secret Engine k/v version 2.

Using this secret engine allows you to integrate Vault into the web application without impacting the code itself. It is also the easiest method to implement.

Regarding the authentication of the application to the Vault, we will use Approle.

You will find the sources for setting up this solution on the previous environment here.

So here’s what we’ll add to the web application deployment process:

  1. Configuration of the Vault, via Terraform (cf: terraform folder), in order to set up:
  • The authentication backend: Approle
  • Approle configuration for the web application so that it can authenticate with Vault
  • Creation and implementation of read-only application policies on the following path: secret/data/web
  1. Providing the Role ID and Secret ID to an environment variable via Docker. To simplify the demonstration, we are not using a CI / CD pipeline, so this step will be manual.
  2. Authentication and retrieval of secrets from Vault when the application is started. Here the script vault.sh will perform these actions at the entrypoint of our application container.

The secrets will be environment variables, without impacting the code itself.

What changes ?

First change, the secret is no longer in the clear in the code, it is recovered within the code via environment variables:

$host   = getenv('DB_HOST');
$dbname = getenv('DB_NAME');
$user   = getenv('DB_USER');
$pass   = getenv('DB_PASSWORD');

The second change concerns the docker-compose stack where we removed the application to place it in an isolated stack named app.yml, in order to be able to separate the infrastructure and application lifecycles.

Compared to our web service, two notable changes:

  1. Adding an entrypoint for script execution vault.sh
  2. Adding two environment variables related to Vault VLT_ADDR (our Vault address) and VLT_PATH (the path of our application secrets). In our case, these variables allow us to simplify our demonstration.
entrypoint: ["vault.sh"]
environment:
  - DB_HOST=${MYSQL_HOST}
  - DB_NAME=${MYSQL_DATABASE}
  - VLT_ADDR=http://vault:8200
  - VLT_PATH=secret/data/web

Finally, we added the script vault.sh. This will be played when our container is initialized and will perform the following steps:

  1. Verification and retrieval of expected variables: Role_ID and Secret_ID
  2. Authentication to the Vault with the Approle method using the Role_ID and the Secret_ID. This will return a Vault token which will allow our application to retrieve its secrets.
  3. Retrieving secrets from the path: secret/data/web
  4. Providing environment variables DB_USER and DB_PASSWORD
  5. Launch of our Apache server

Testing our example

Now that we have made the changes, it is time for us to test our application.

Let’s start by setting up our infrastructure:

  1. Folder initialisation with terraform in order to retrieve the good providers: $ docker run –rm -v $(pwd)/terraform:/app/ -w /app/ hashicorp/terraform:light init
  2. Deployment of our infrastructure: $ docker-compose up

With the infrastructure operational, we can access our Vault via this address: http://127.0.0.1:8200

Since we don’t have a CI / CD pipeline, some steps are manual. Let’s start by storing our secret in the Vault:

  1. Access the Vault via the UI interface: http://127.0.0.1:8200
  2. Use Token authentication with the following token: root
  3. Select the secret engine ‘secret’ then create a secret with the path: web
  4. Enter the secret as in the following screenshot and then click on Save

Vault create secret

Our secret is now in our Vault. All we have to do is launch our application with the correct Role_ID and Secret_ID:

$ role_id=$(docker run –rm -v $(pwd)/terraform:/app/ -w /app/ hashicorp/terraform:light output approle_role_id)
$ secret_id=$(docker run –rm -v $(pwd)/terraform:/app/ -w /app/ hashicorp/terraform:light output approle_secret_id)
$ docker-compose -f app.yml run -e VLT_ROLE_ID=$role_id -e VLT_SECRET_ID=$secret_id –service-ports web

Our app is again available at http://127.0.0.1:8080 and the result should be the same as the previous step:

Vault result migration We have been very successful in integrating Vault into our application without impacting the application code.

Finally, for clean, don’t forget to run the following commands:

$ docker-compose down
$ docker-compose -f app.yml down
$ rm terraform/terraform.tfstate

Migration key takeaways

  • The application code has not changed (except for the secret deletion)
  • A script has been added at the entrypoint in order to interact with the Vault to retrieve the secrets and store them as an environment variable
  • Before the application is deployed, the Vault must be configured to allow Approle authentication of the application and the database secret to be stored there. This step must be automated on the Ops side

The integration of the Vault is transparent on the developer side, but this method does not solve the problem of secret rotation, or even the knowledge of the secret by the ops.

In our next post, we will see how to solve these problems through dynamic secrets (Secret as a Service).
